In the Universal Diagramming Area we have collected templates, libraries and objects of most often used drawings, here you can find much of what you need for your illustrations. ConceptDraw PRO contains more than 20,000 objects in 100 libraries; these huge libraries will help illustrate what you mean. The solutions found in the Universal Drawing Area of ConceptDraw Solution Park can be used for generating basic drawings, charts, geographical maps, building plans, wiring and network diagrams, communications, education, engineering, and software prototyping.

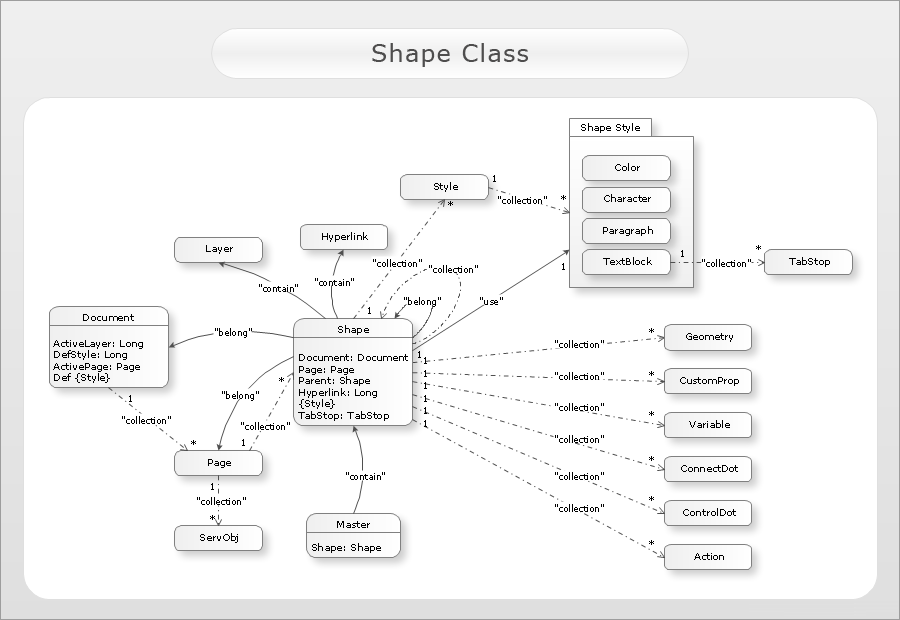

The new Rapid UML Solution uses RapidDraw technology to help ConceptDraw PRO users develop their UML diagrams as quickly as ideas come.
Activity Diagram, Class Diagram, Communication Diagram, Component Diagram, Composite Structure Diagram, Deployment Diagram, Interaction Overview Diagram, Object Diagram, Package Diagram, Sequence Diagram, State Machine Diagram, Timing Diagram, Use Case Diagram.

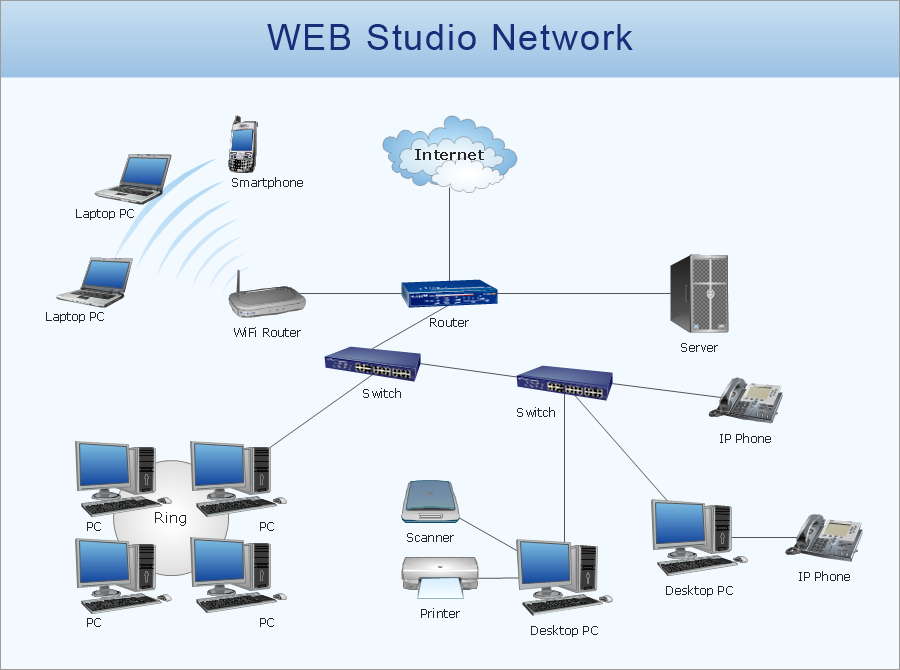

Helps you create professional-looking network diagrams quickly and easily allowing you to clearly represent and communicate network architecture, topology, and design to engineers, stakeholders and end-users.

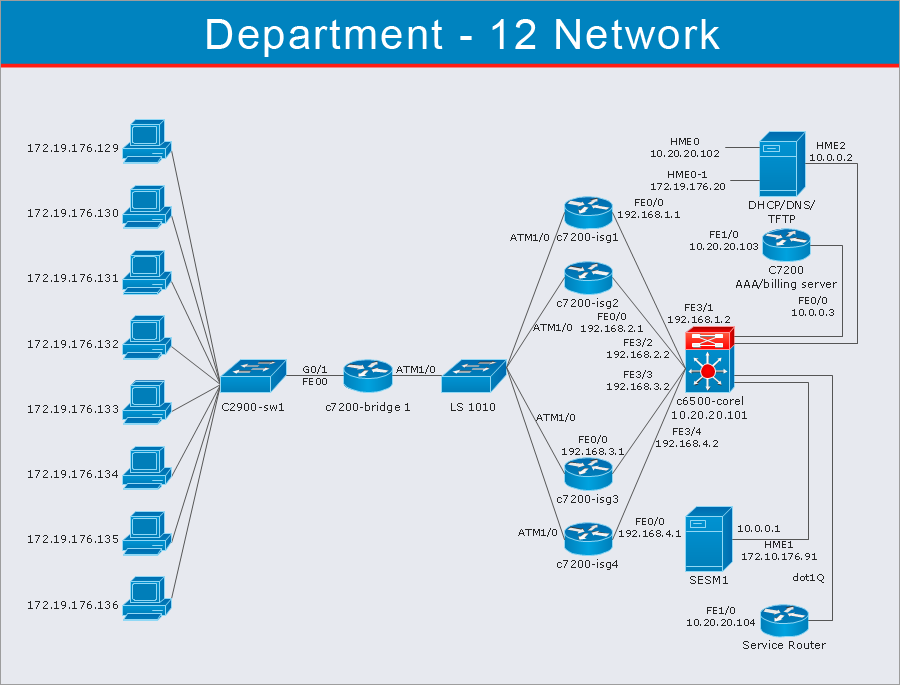

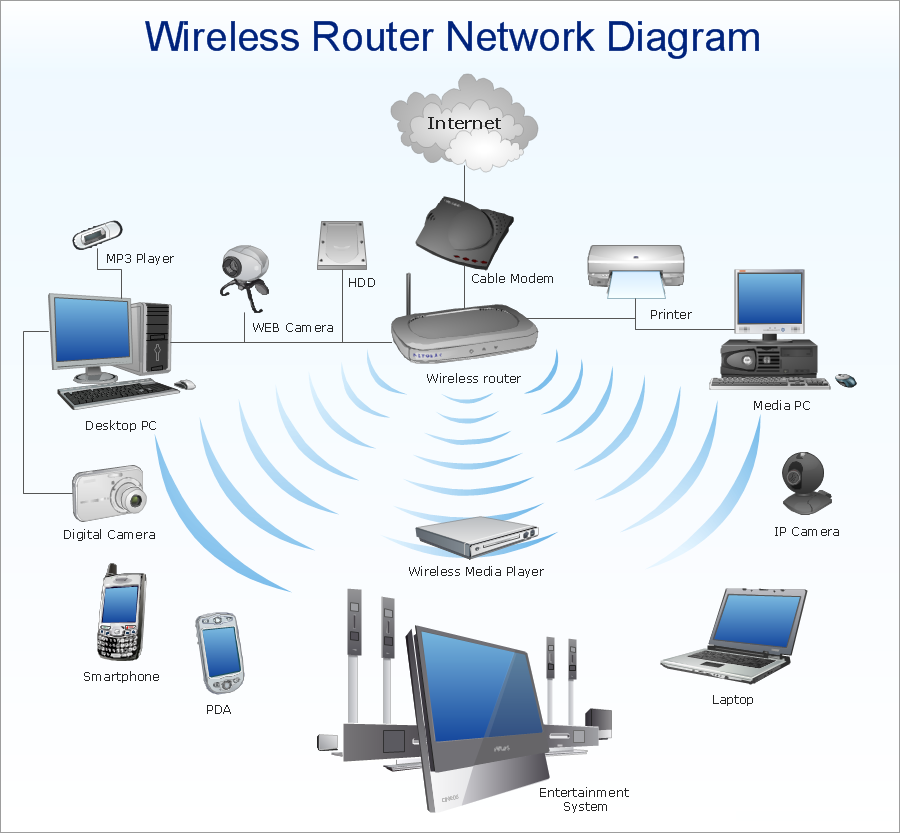

Draw network diagrams, physical LAN & WAN diagrams, Cisco network topology diagrams.

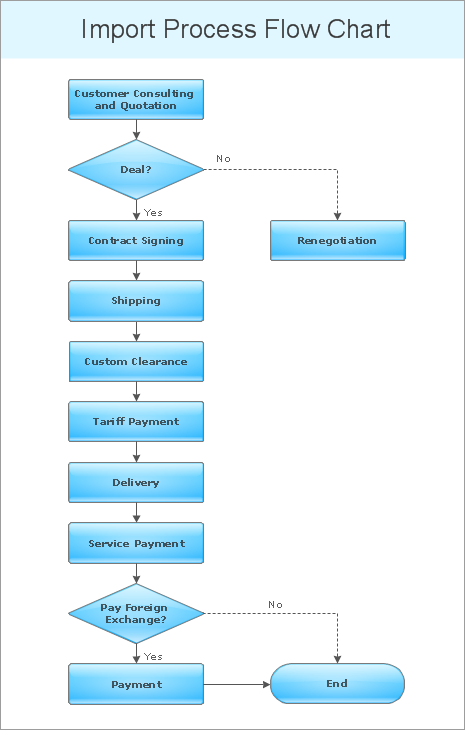

Draw flowcharts, block diagrams, histograms, pie charts, divided bar diagrams, line graphs, circular arrows diagrams, Venn diagrams, bubble diagrams, and concept maps, plus more can be generated with ease.
Draw flowcharts, block diagrams, histograms, pie charts, bubble diagrams and concept maps.

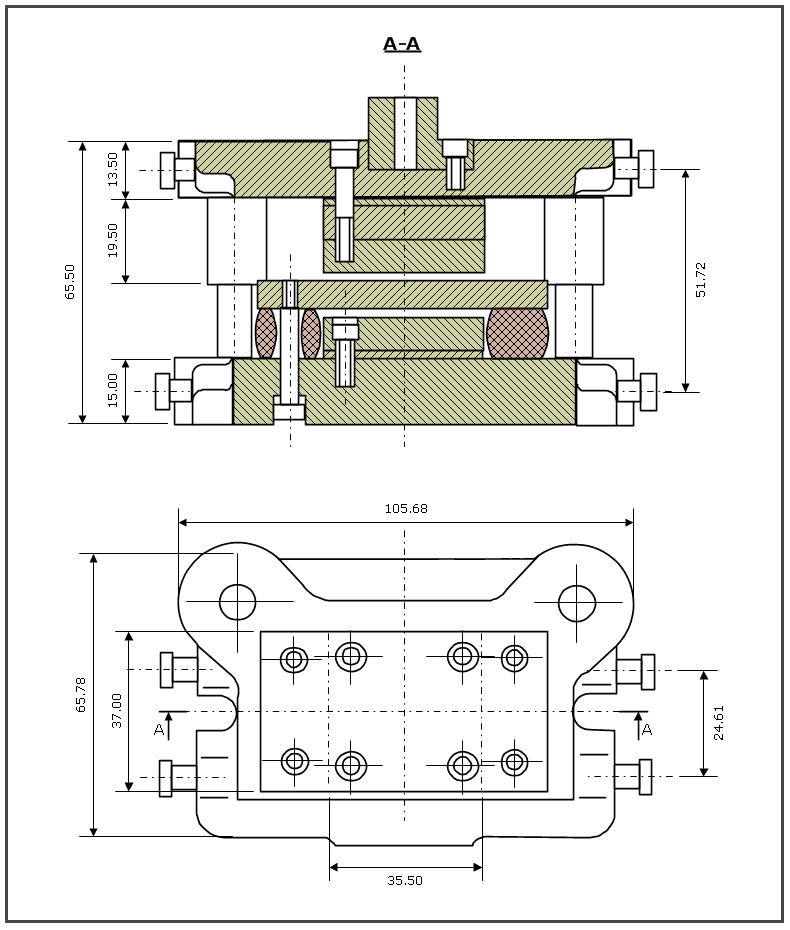

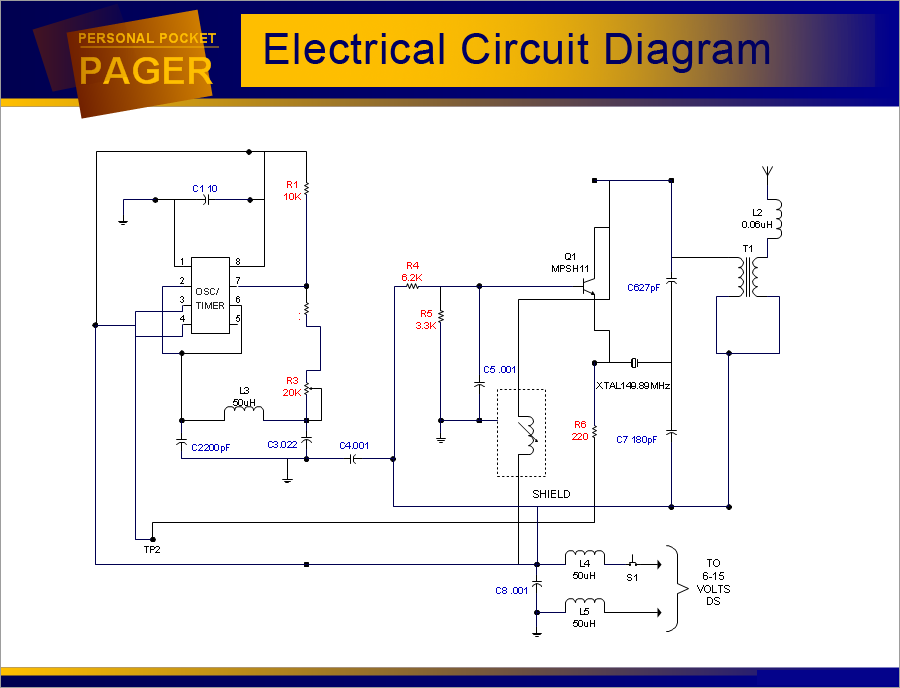

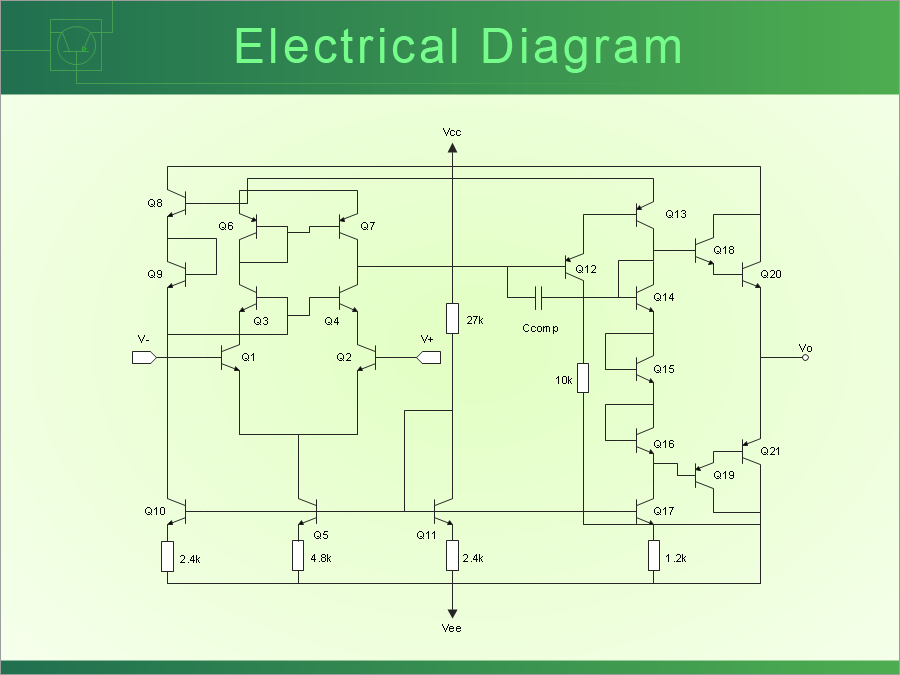

ConceptDraw PRO helps to visualize industrial systems in electronic, electrical, chemical, process, and mechanical engineering. Draw electrical schematics, digital and analog logic, circuit and wiring schematics and diagrams; power systems diagrams; maintenance and repair diagrams for electronics and electrical engineering; block flow and process flow diagrams, piping and instrumentation diagrams for chemical and process engineering; part, assembly, pneumatic, and hydraulic systems drawings for mechanical engineering.
Draw electronics and electrical, chemical and mechanical engineering diagrams and schematics.
Helps to accelerate and simplify software development and design by allowing you to draw UML diagrams and prototype Windows and Mac OS user interfaces.
Draw UML diagrams and sketch drawings of Windows 7 UI and Mac OS X Snow Leopard UI.

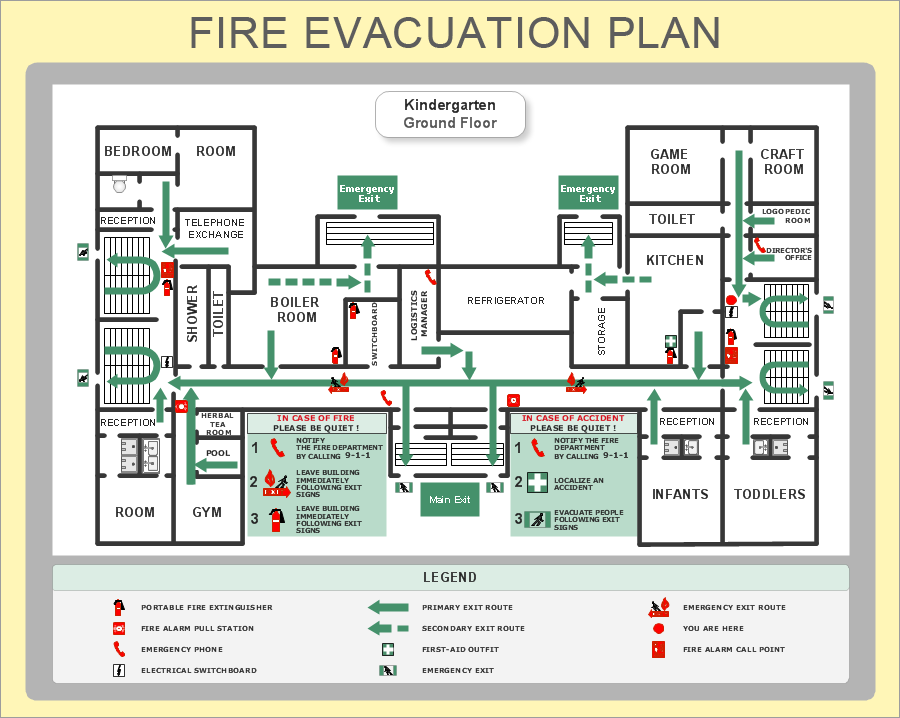

Building plan tools help architects and building engineers. With ConceptDraw PRO, you have the ability to develop design proposals, communicate ideas and concepts that relate to a design, communicate requirements to a building contractor, record completed work, and make a record of what currently exists. With ConceptDraw PRO you can draw floor plans, site plans, plans of building services, fire and emergency plans, and furniture and equipment layouts.
Draw floor plans, site plans, plans of building services, fire and emergency plans.
Draw continent, directional, road, and transit maps to represent international, business, and professional information visually. Reflect the geographic distribution of activity and resources, show the transportation and migration ways, navigate in the cities and towns, sites and areas, find route of travel by car or public transport.
Draw geographic and directional maps using pre-designed map objects.
Illustrate educational documents, presentations, and websites quickly and easy with the astronomy, chemistry, math, and physics vector pictures and clip art.
Create great educational materials using pre-defined templates and libraries of objects (chemistry, astronomy, math, physics).
Make professional-looking documents, presentations and websites illustrated with color scalable vector clip art and shapes.
Create illustrations using color vector clip art (advertising, management, professions, computers, technology, etc.)
Everyone in company is using the same symbols on the maps. It saves time on communication and understanding.

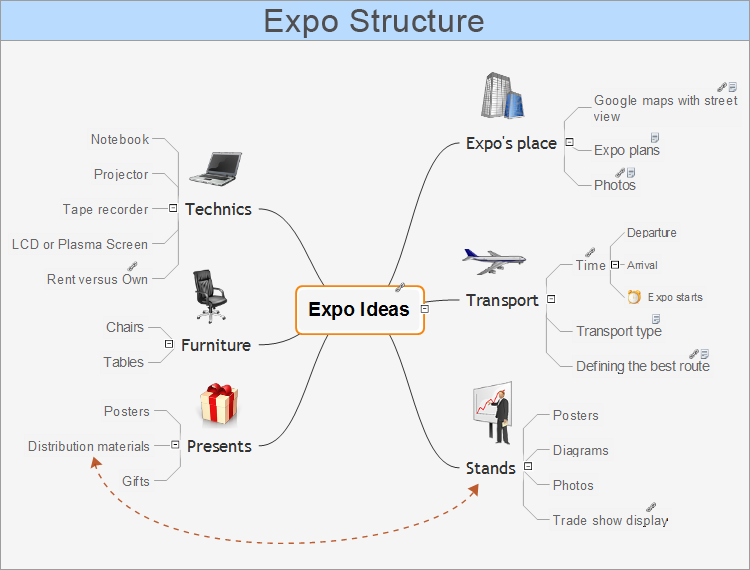

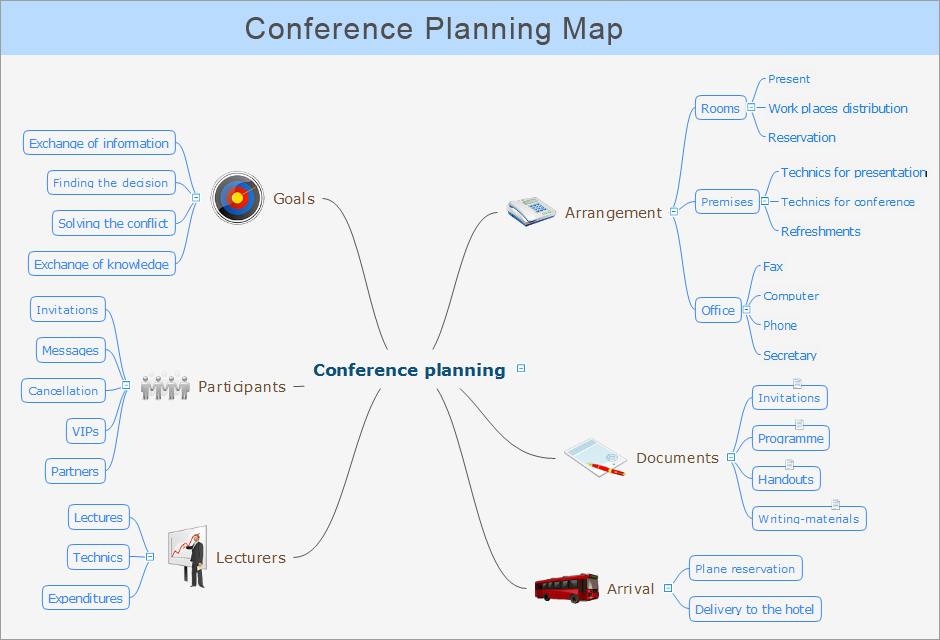

Use topic types “Decision”, “Idea” and “Document” to increase map’s significance.
