Restaurant Floor Plan Maker

Wondering to open a successful cafe or restaurant, you will start by working out the floor plan and design of the premise. It is important to do everything so that then there were no problems during operation. That is why the floor plan must be developed very carefully through every room and location. Making a restaurant floor plan involves many different elements that can be managed using ConceptDraw Cafe and Restaurant Floor Plan solution. There are 9 stencil libraries containing 298 objects of cafe and restaurant interior elements.

1. Run ConceptDraw DIAGRAM
2. Reveal the Cafe and Restaurant Floor Plans solution in the Solutions panel.

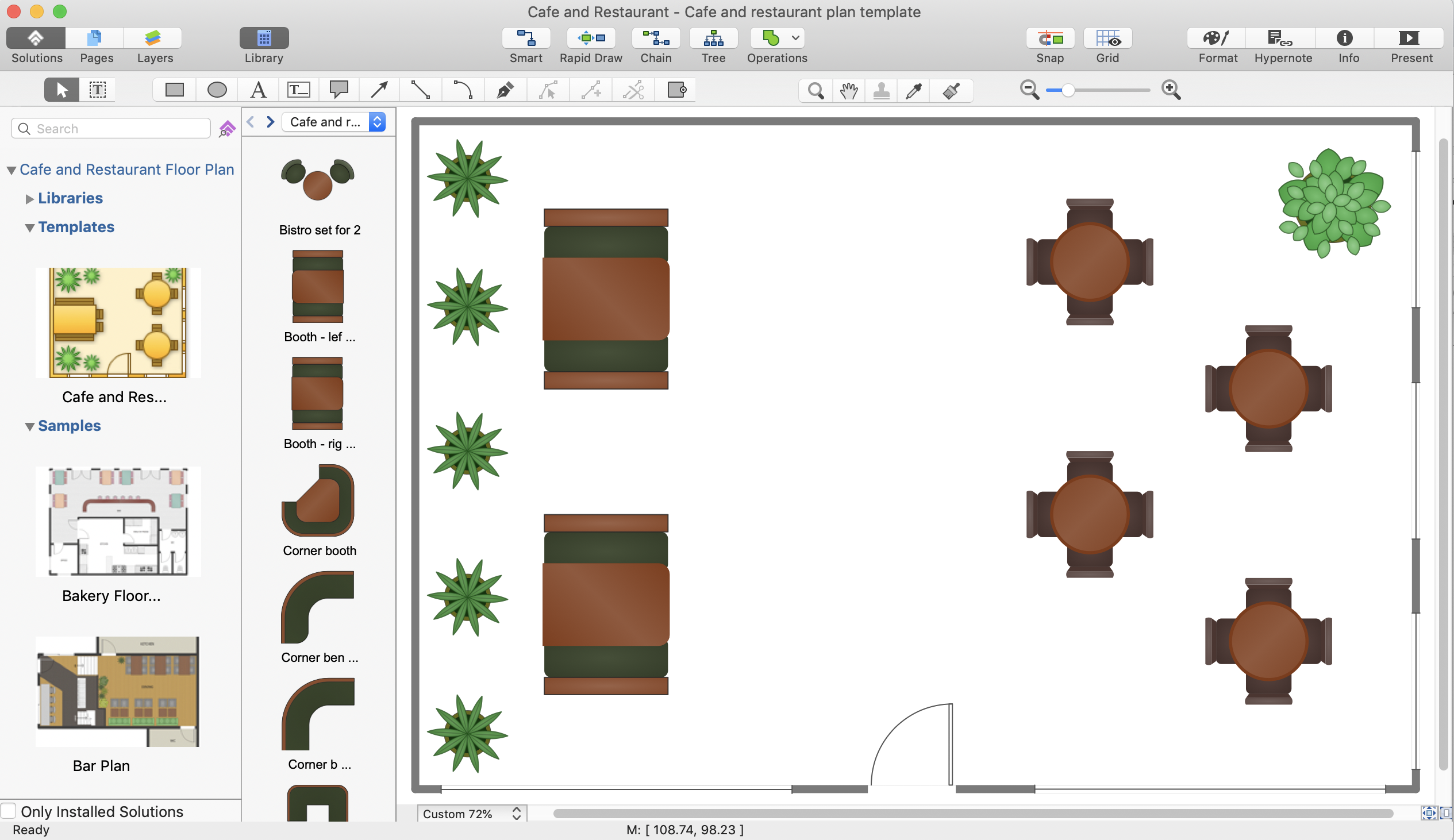

3. Start with a basic floor plan template, or browse solution's entire collection of samples.

4. Now you got the workspace and the set of corresponding libraries.
5. Run the Document Properties dialog to input your dimensions to scale premises.

6. Add walls, doors and windows.

7. Drag and drop library objects to equip your space: furniture, kitchen appliances, lighting equipment and more.

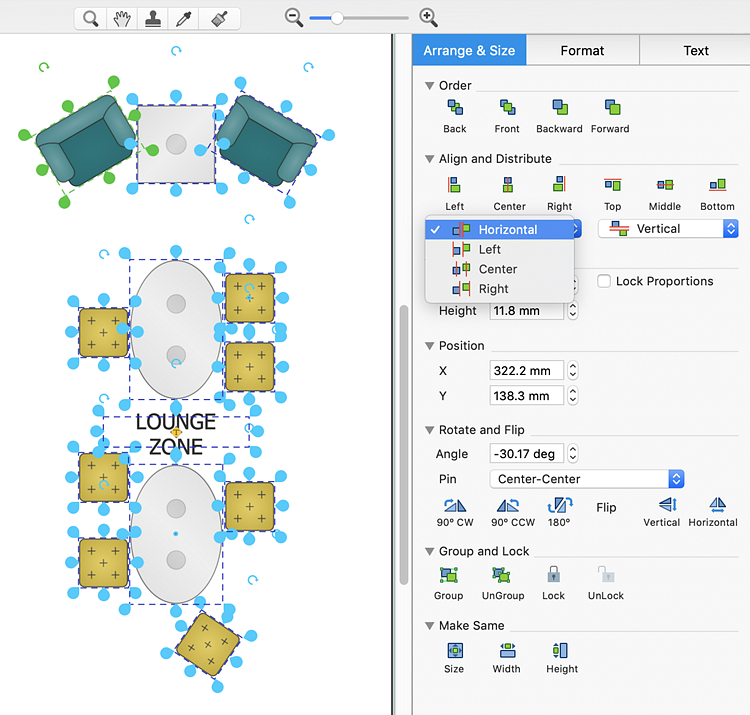

8. Use the Snap and Arrangement tools to arrange objects at a glance.

9. You can use multiple layers when creating different parts of your floor plan. ConceptDraw DIAGRAM allows you to create as many layers as you need. Read here how to add layers on Mac and PC.
10. Place related objects on different layers. So you get the ability to hide the certain group of objects making the layer invisible. This method is convenient for the detailed elaboration of your floor plan. For example, you can hide plants to more precisely arrange furniture.


Result: This article will be helpful for you whether you intend to start a small restaurant, or just need to redesign the interior of your cafe.
