How to Reshape an Object Using Vertex Tool on Mac

The Vertex Tool in ConceptDraw DIAGRAM allows you to modify and customize the shape of drawing objects by adding and moving vertex points. This feature is useful when you need to reshape basic objects, create custom forms, or adjust existing graphics to better fit your diagram.

Follow the steps below to add vertex points and reshape an object using the Vertex Tool in ConceptDraw DIAGRAM for Mac.

1. Run ConceptDraw DIAGRAM and create a new document.

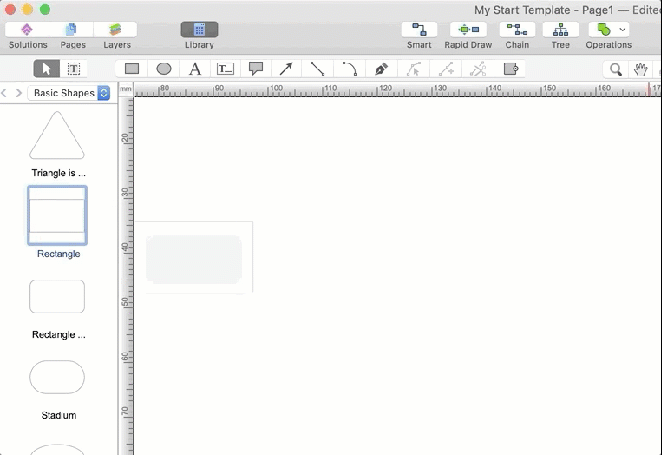

2. Open the Basic Shapes library.
3. Add shapes to your drawing using one of the following methods:
   • •  Click a shape and then click anywhere in the document.
   • •  Drag and drop a shape from the library onto the document.
   • •  Double-click a shape icon in the library.
4. Activate the Vertex Tool. The cursor will appear as a crossed circle.

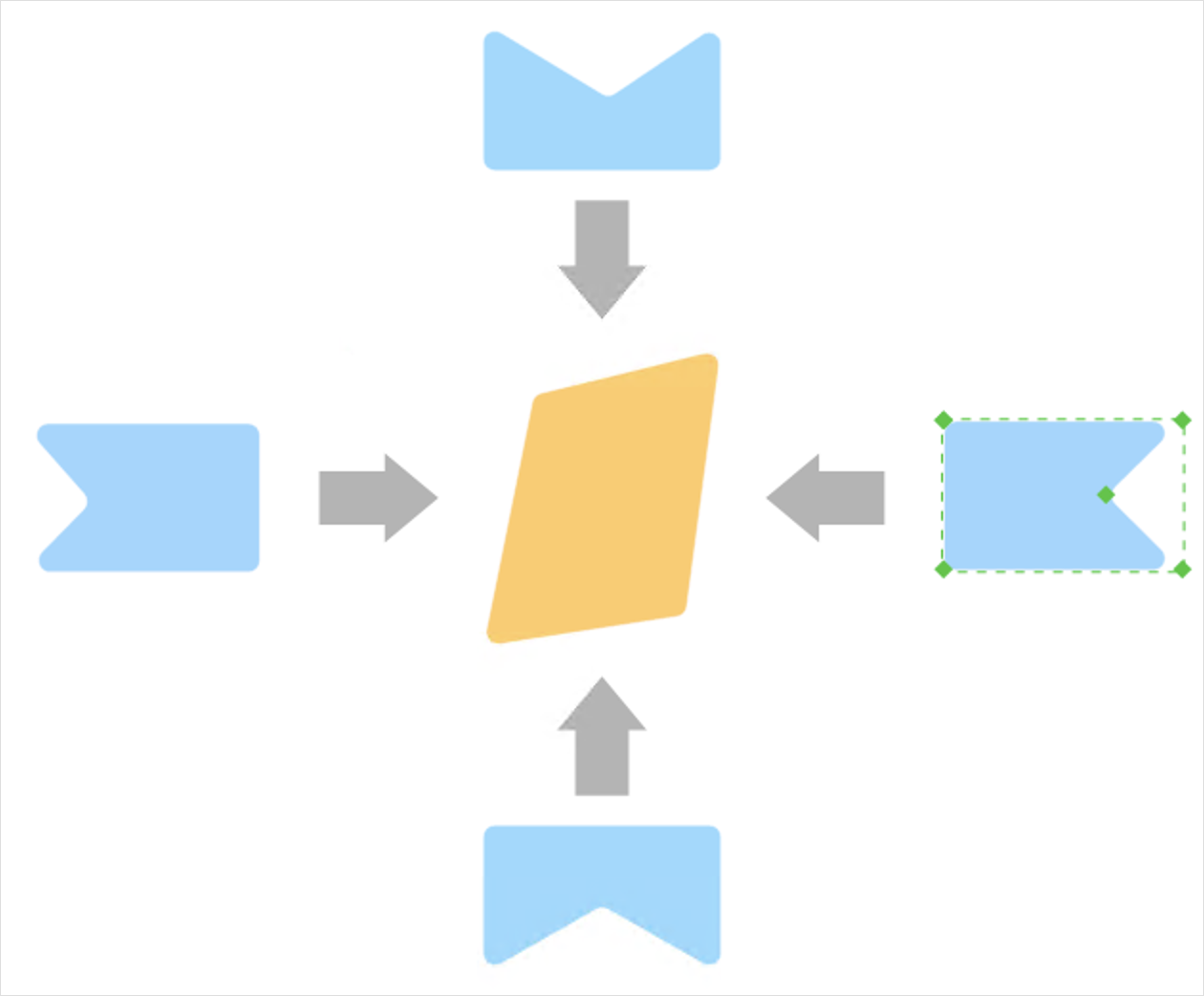

5. Click an object's outline to add a vertex point.
6. Reshape the object by dragging the newly added vertex point.

Result: You can easily modify object shapes by adding and adjusting vertex points, giving you greater flexibility when creating custom diagrams and illustrations in ConceptDraw DIAGRAM.
