Tilt and Turn Windows

The time does not stand still and if earlier the windows had mostly standard forms and hinged sashes, the modern technologies amaze us and often puzzled with variety of choice. The modern windows differ in forms, sizes, materials of manufacturing, design of sashes and frames, methods of their opening, amount of glass and in many other parameters. When talking about a material, the metal-plastic windows are especially popular due to their convenience, practicality, integrity, durability and advanced technologies that allow to produce the plastic windows of standard rectangular and square forms, as well as almost of any extraordinary design - round, triangular, trapezoidal, arched, and other original forms. The level of modern technologies and design features of plastic windows are especially pleasing for designers and architects of all countries, allowing them to design and develop original and exquisitely buildings, applying the windows constructions of various forms and styles.

Each case and each building or room is unique and individual, but one of the key points when choosing the windows is their further ease and comfort of using, which is mostly defined by the method of opening the sashes. There are many kinds of windows: fixed, tilt, turn, sliding, lifting, folding, however the most widely used are the windows with combination of tilt and turn functionalities. They are comfortable and allow to open the window fully, to place it at the airing position, tilting the upper part, or at the micro-airing position by setting the handle under 45° angle. In each case are used the unique fasteners and fixing mechanisms. The design of windows is also varied, depending on the specific conditions and type of premises are set the single, paired, separate, double, multi-panel windows with openable transom or fixed, or without it, also quite often is applied the variant of two-panels window that consists from one passive turn panel, one active tilt and turn panel, and has no median lath.

ConceptDraw DIAGRAM enhanced with newest Tilt and Turn Windows solution provides you with professional tools and ready-to-use vector design objects making the process of window design simple and comfortable, allowing easily model the windows constructions, to draw the sketches and schematics of windows, to create detailed drawings of window designs combining different types of sashes, designing the tilt inward and outward windows, single, double window or multi-panel windows, single hung window, double hung window, and many other window types with depiction of sizes and types of turn constructions.


There are 2 stencil libraries containing 65 vector objects in the Tilt and Turn Windows solution.

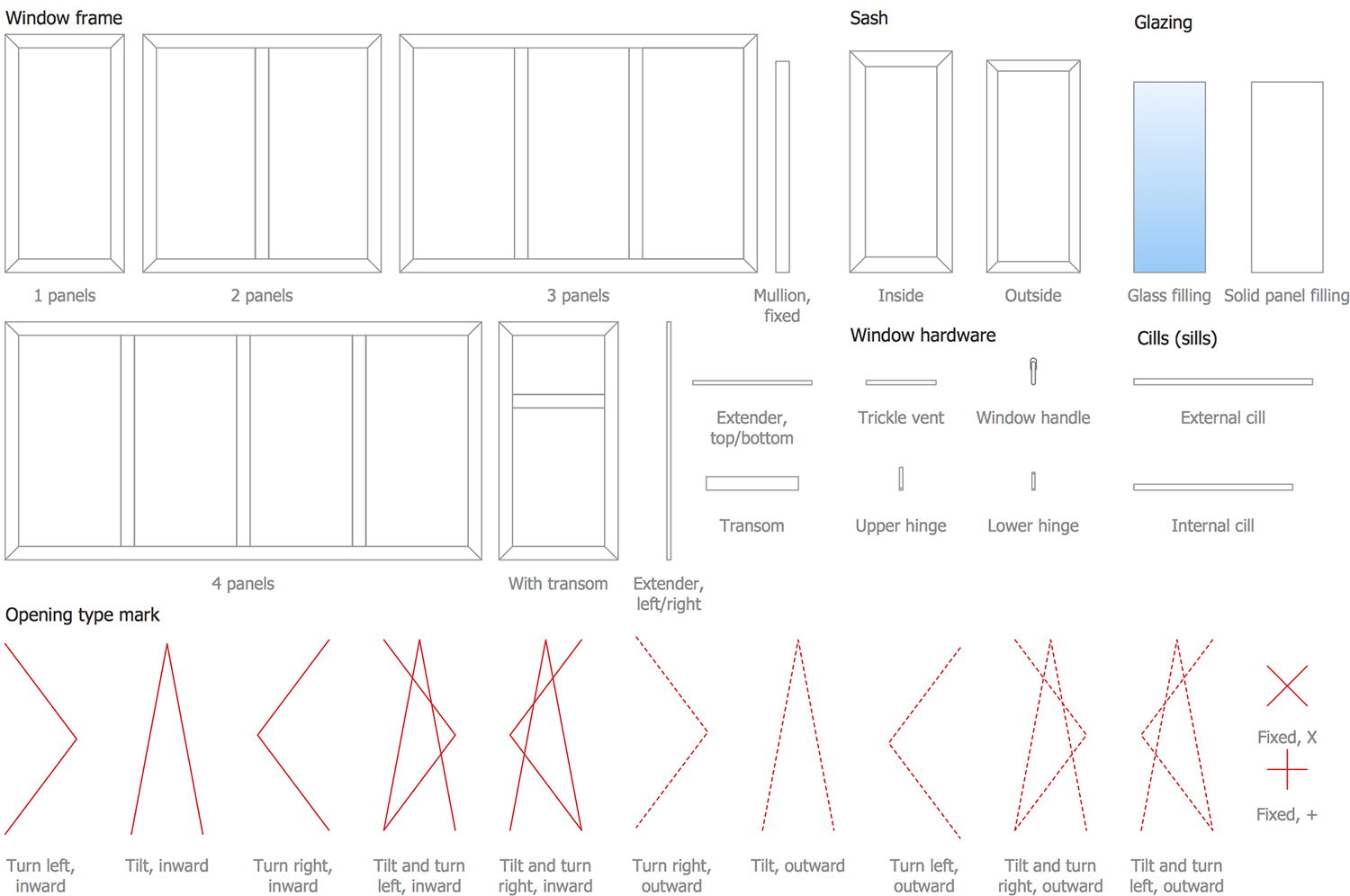

Design Elements — Tilt and Turn Windows

Design Elements — Tilt and Turn Windows

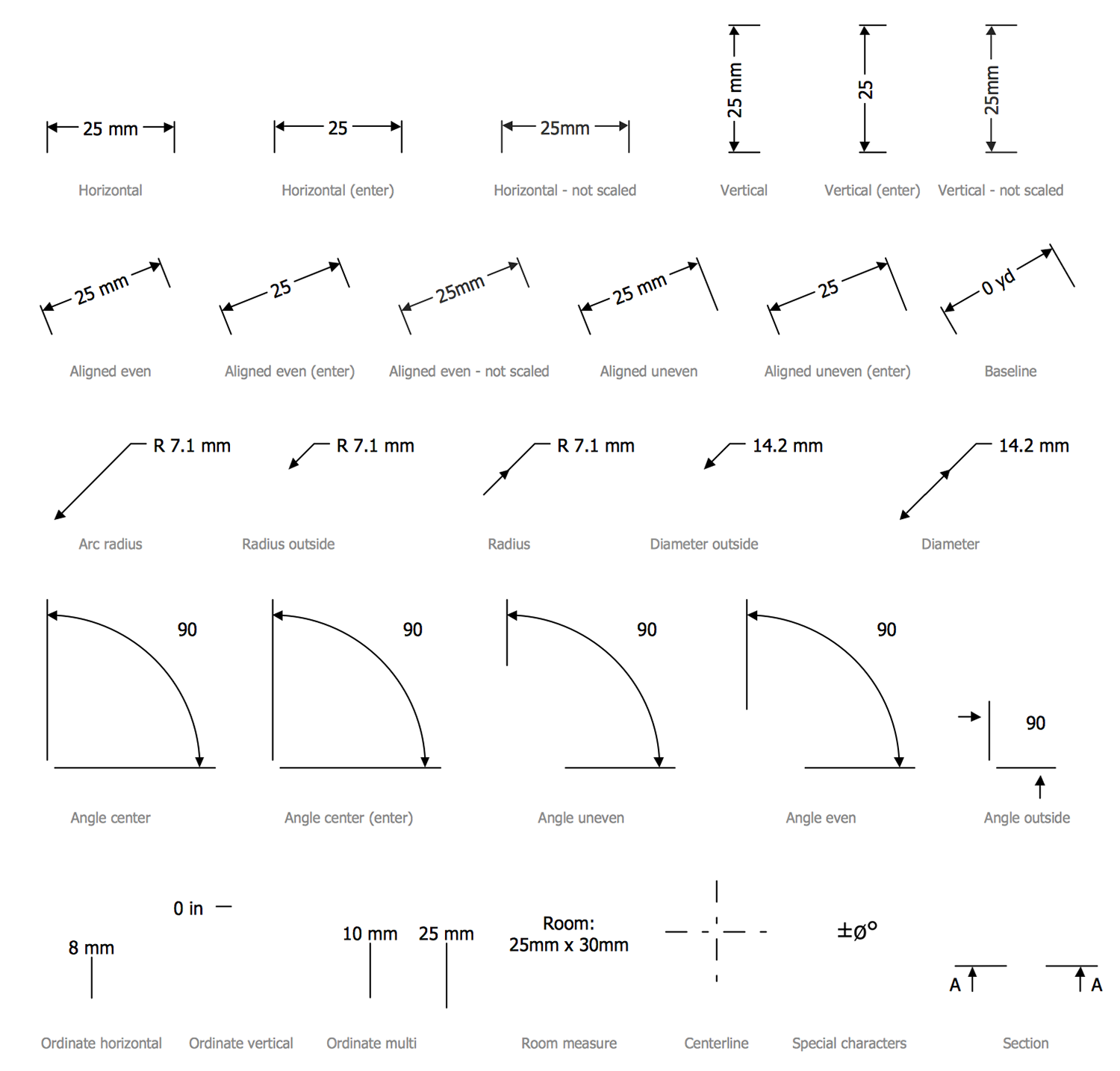

Design Elements — Dimensioning

Design Elements — Dimensioning

Examples

There are a few samples that you see on this page which were created in the ConceptDraw DIAGRAM application by using the Tilt and Turn Windows solution. Some of the solution's capabilities as well as the professional results which you can achieve are all demonstrated here on this page.

All source documents are vector graphic documents which are always available for modifying, reviewing and/or converting to many different formats, such as MS PowerPoint, PDF file, MS Visio, and many other graphic ones from the ConceptDraw Solution Park or ConceptDraw STORE. The Tilt and Turn Windows solution is available to all ConceptDraw DIAGRAM users to get installed and used while working in the ConceptDraw DIAGRAM diagramming and drawing software.

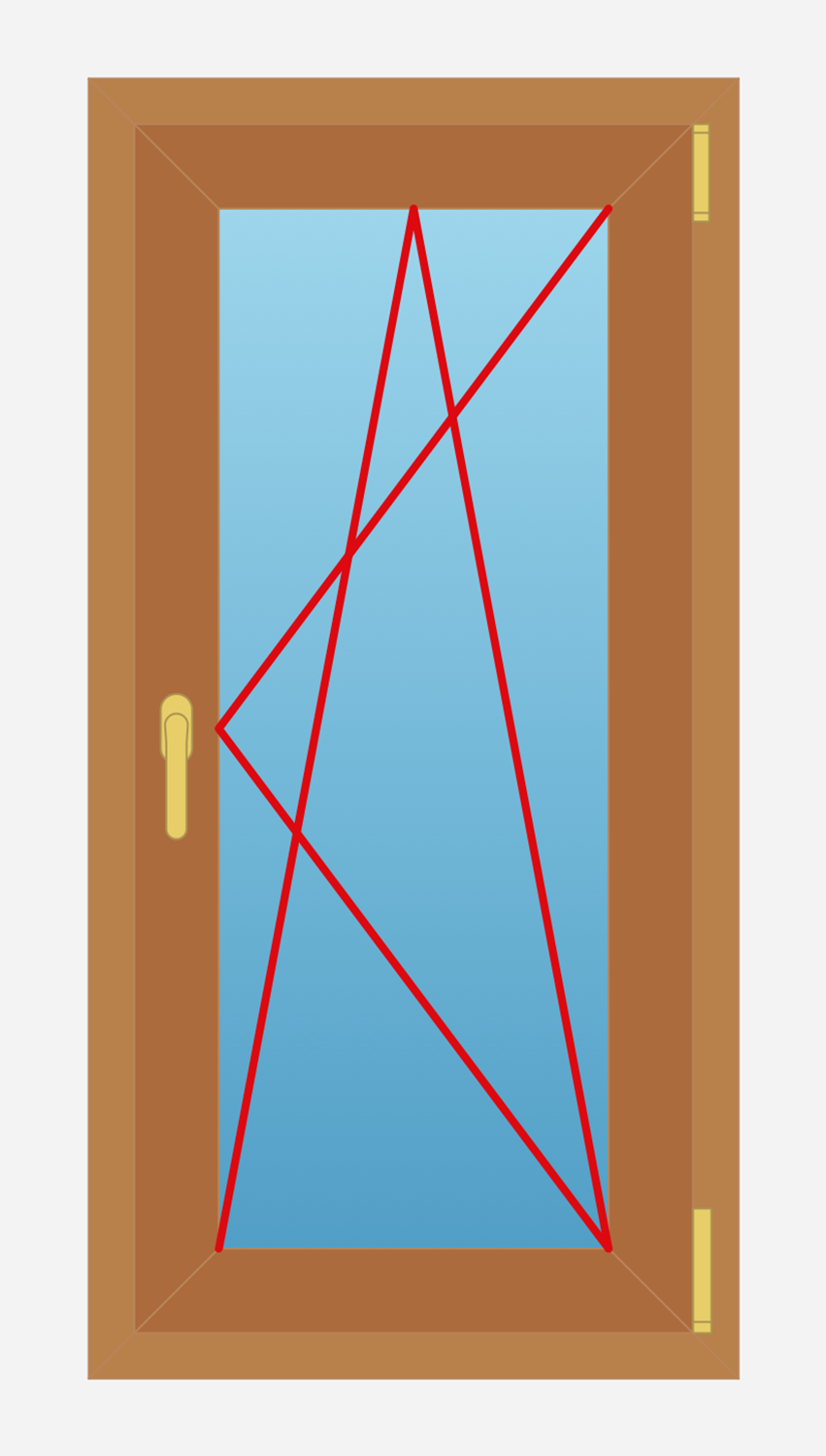

Example 1: 1 Panel Inside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

This sample illustrates the inside view of the single panel window. In a schematic way is represented that this is a window with tilt and turn right inward mechanism. The represented designations are common used for windows constructions. According to the rules, for illustration the window’s opening inside the room are used the solid lines in the case of displaying the window inside the room, and dashed lines when the window is displayed from outside.

1 Panel Inside

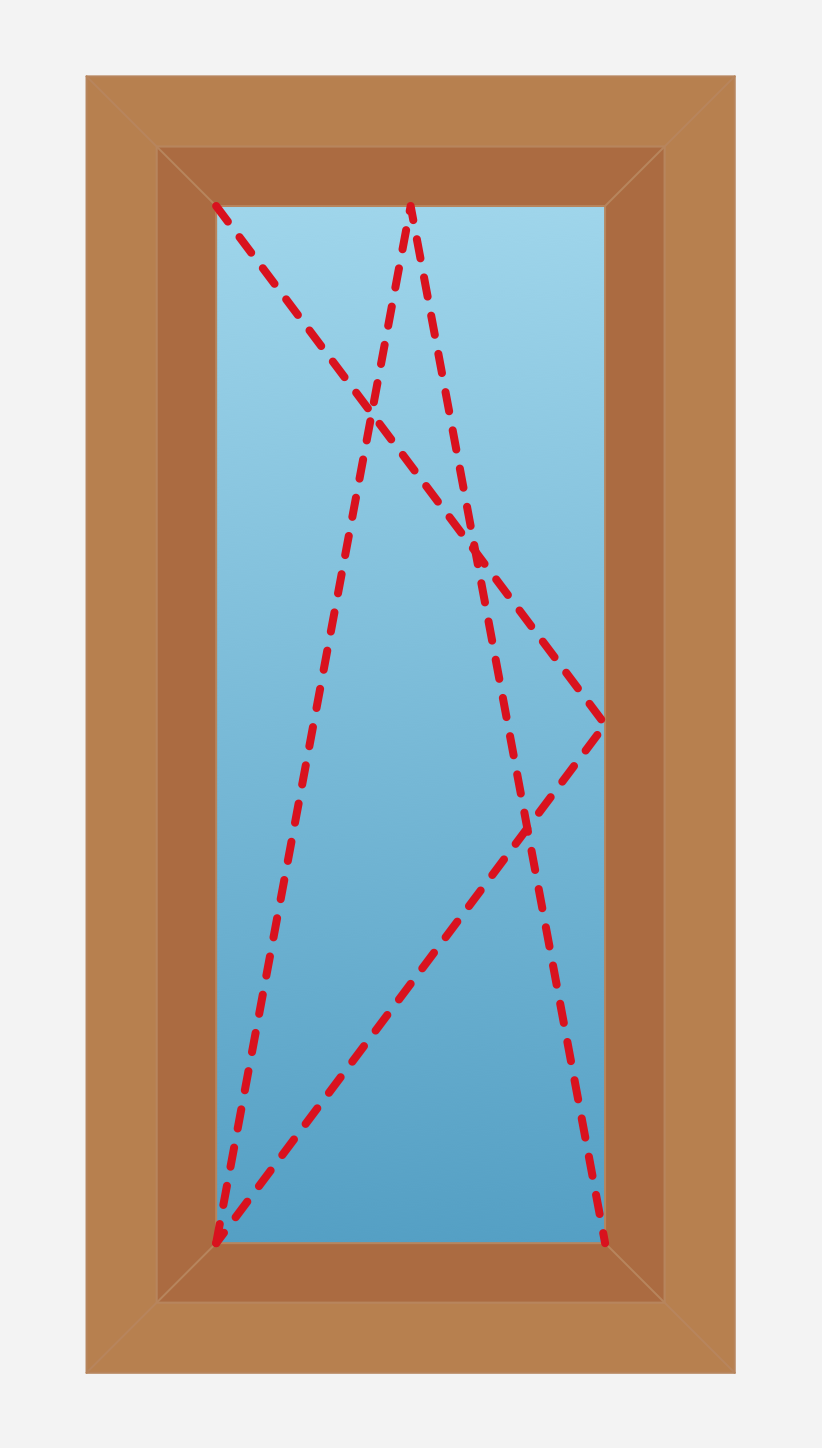

Example 2: 1 Panel Outside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

The method of window's opening is a quite important factor, from it entirely depends how comfortable will be its use. This example demonstrates the outside view of the single panel window, that is tilt and turn right outward. Any opening type can be displayed in seconds with use of vector objects from the Tilt and Turn Windows library developed and offered at the same-titled solution at ConceptDraw Solution Park.

1 Panel Outside

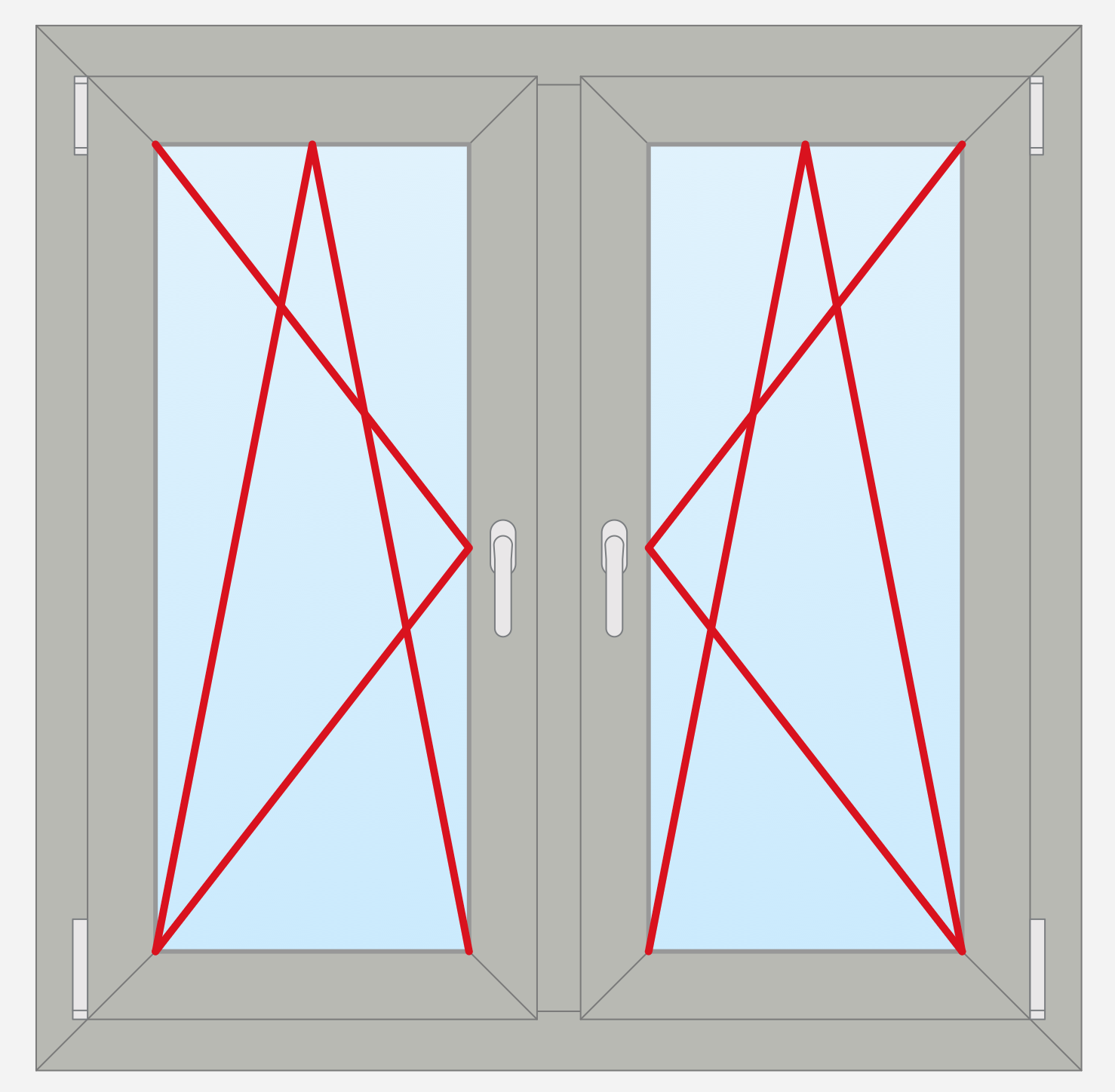

Example 3: 2 Panels Inside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

Windows are the main sources of sunshine to the premises, from their size and design depends the quantity of incoming light and comfort of staying at the room. This window design example shows the inside view of standard window with two symmetrical panels. As for the way of window’s tilt and turn, both panels are equivalent, they can be turn and opened in opposite sides. You are free to change the method of opening in seconds using the predesigned vector objects from the Tilt and Turn Windows solution libraries.

2 Panels Inside

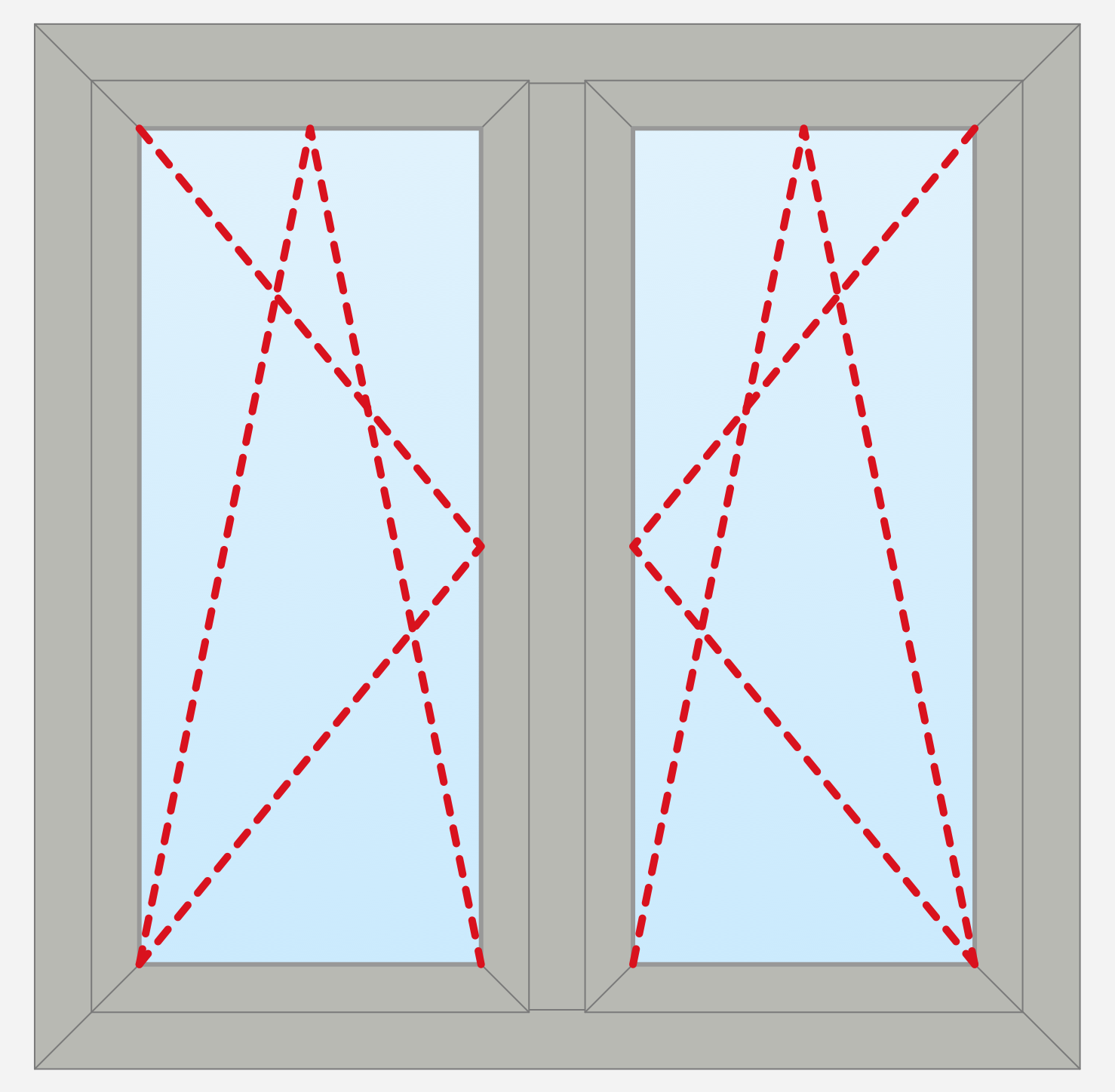

Example 4: 2 Panels Outside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

The windows supply us with ability of delivering the light, sound and air to the buildings, at this providing diverse degrees of lighting and sound isolation, due to the modern window technologies. The variety of plastic windows on the today’s market allows consumers to solve the tasks on the glazing their homes and other buildings, and to implement non-trivial design decisions. This sample illustrates the outside view of the double panel window with established system of standard turn in opposite sides and tilt inside the room.

2 Panels Outside

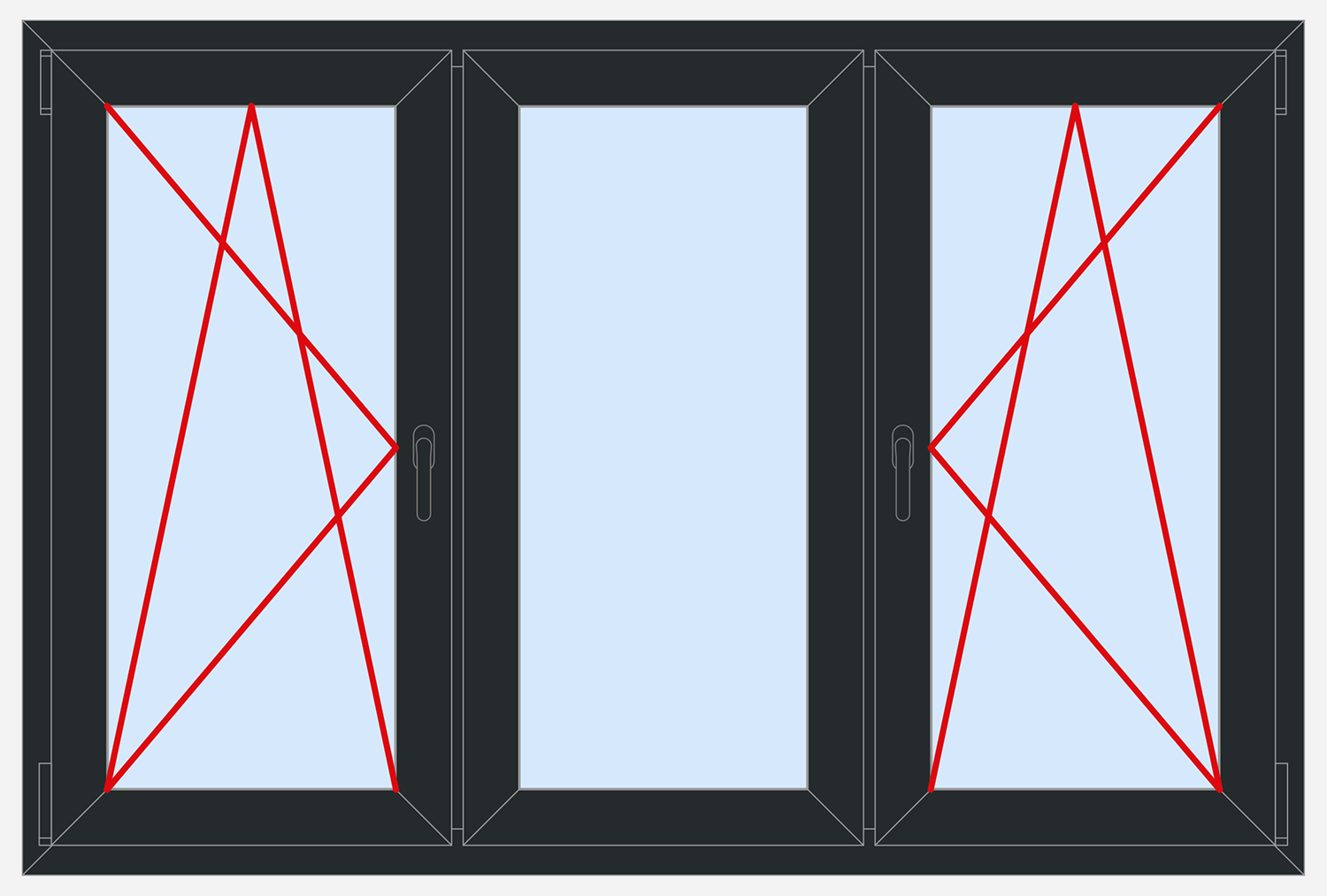

Example 5: 3 Panels Inside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

The number of window panels and the type of construction are one of the main classification properties of window design. The most popular are one-, two-, three-, and four-panel window constructions, as well as the balcony blocks that combine the window and door. This sample represents the sketch of the inside view of a triple panel tilt and turn window.

3 Panels Inside

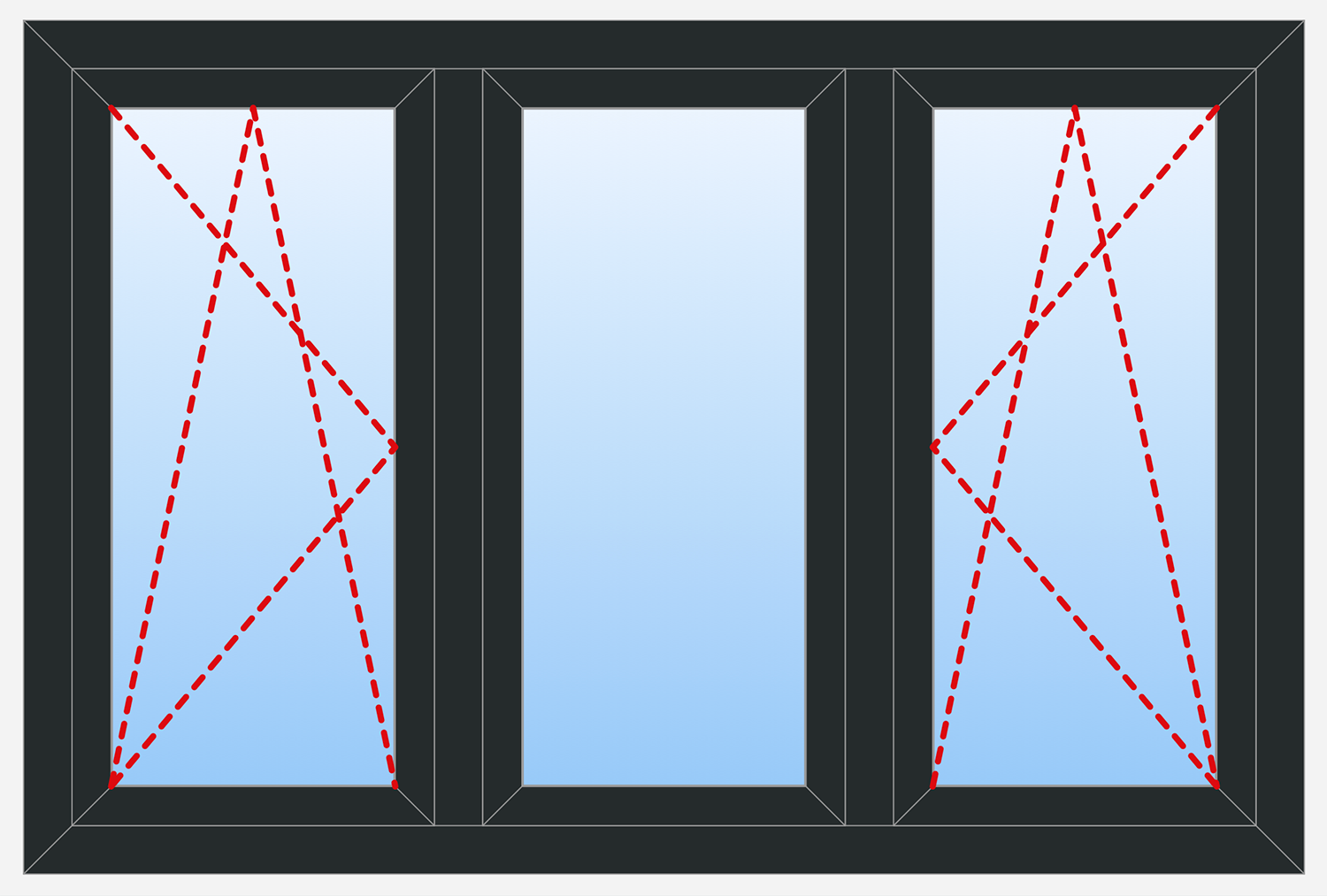

Example 6: 3 Panels Outside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

The variety of types and styles of windows' constructions and designs, the variants of coats and modern technologies of filling the glazing units with gases effective for energy saving, lets to find easily the right option for particular conditions of use. This sketch example illustrates the outside view of triple panel window, two panels from them are tilt and turn, the middle panel is vice versa fixed.

3 Panels Outside

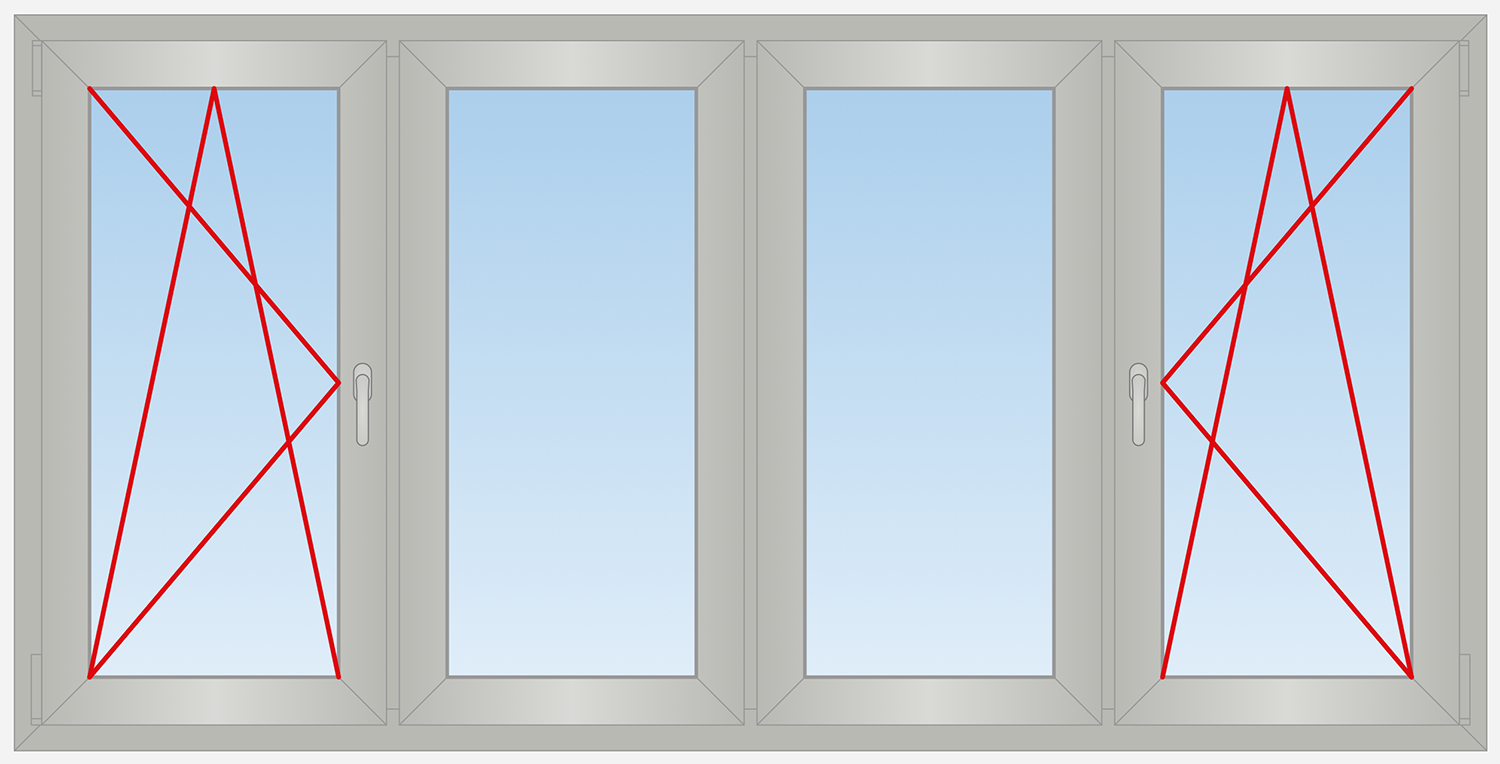

Example 7: 4 Panels Inside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

This sample shows the inside view of the panel window, which is divided into four sections or panels, all them are glazed. Two boundary panels are tilt and turn, two middle panels are fixed. ConceptDraw DIAGRAM software enhanced with Tilt and Turn Windows solution is perfect for professional designing the windows with different number of panels of diverse functionality.

4 Panels Inside

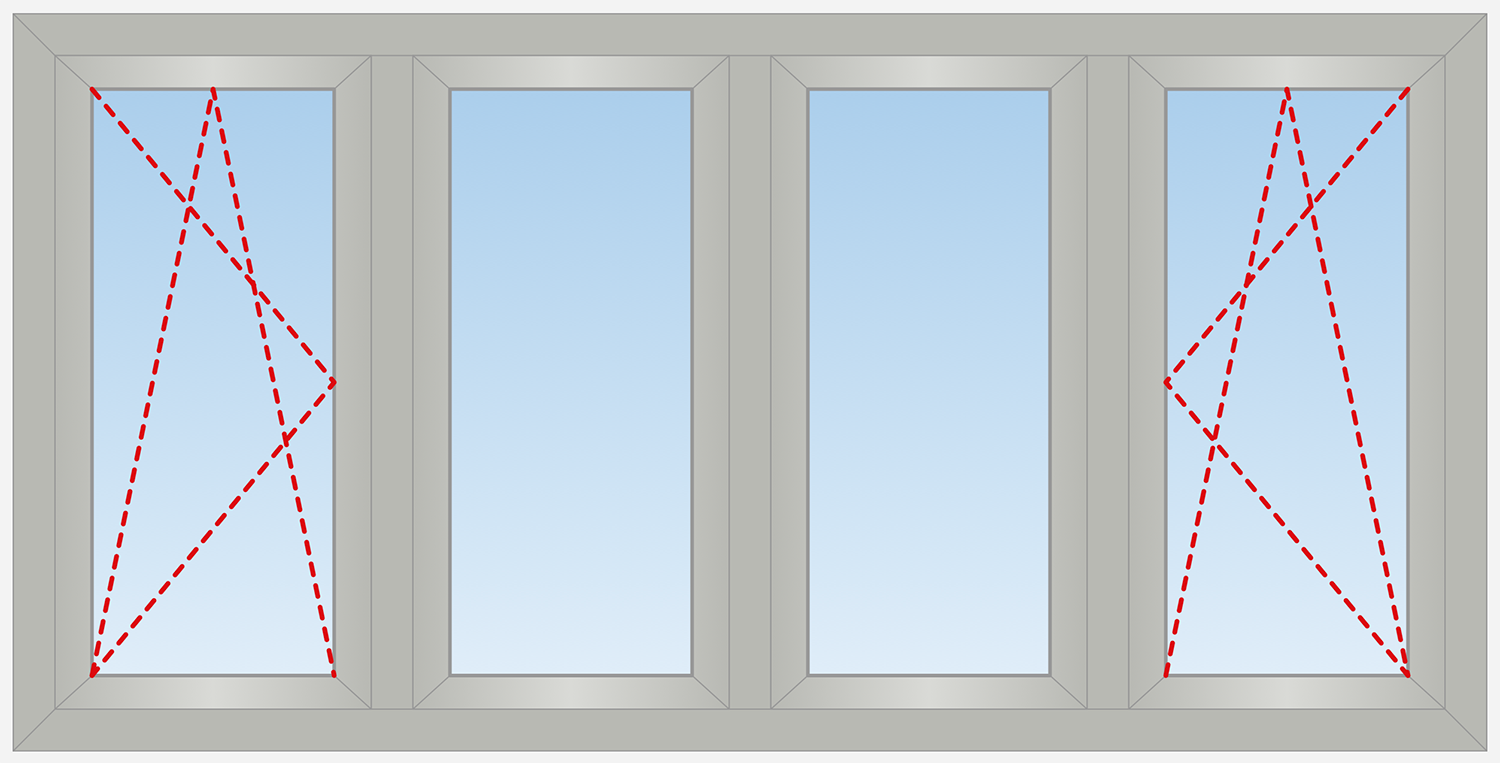

Example 8: 4 Panels Outside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

The glazing of windows is applied already very long time, the modern technologies provide huge choice of window designs and types of glazing, with varied colors of glass, with clear or tinted glass, laminated glass, retro-reflective, energy saving, tempered glass, etc. Besides, the modern metal-plastic window can contain single, double, or even triple glazing units. This example shows the outside view of four-panel window with two tilt and turn panels.

4 Panels Outside

Example 9: Window Inside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 10 minutes creating this sample.

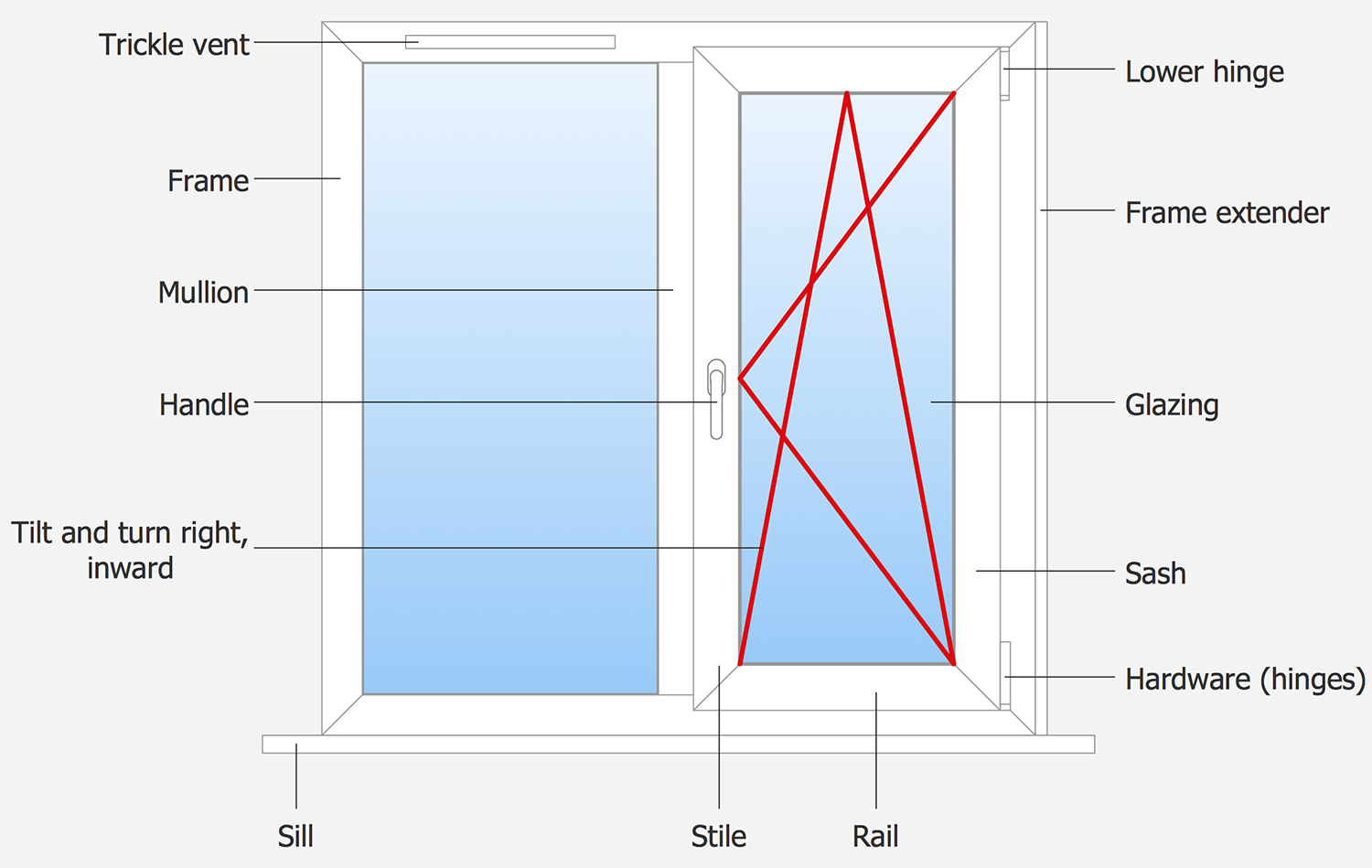

The structure of the metal-plastic windows is quite complex, especially if to compare them with traditional wooden windows. The plastic window is constructed from a variety of parts and its key feature is a modular structure. This example shows the inside view of tilt and turn window, describes its structure and components: frame, sash, glazing, hinges (lower and hardware), mullion, trickle vent, frame extender, stile, rail, still, tilt and turn visual designations. This information is extremely useful not only for those who is related with manufacture of windows and their installation, but also is necessary for all people for correct windows exploitation.

Window Inside

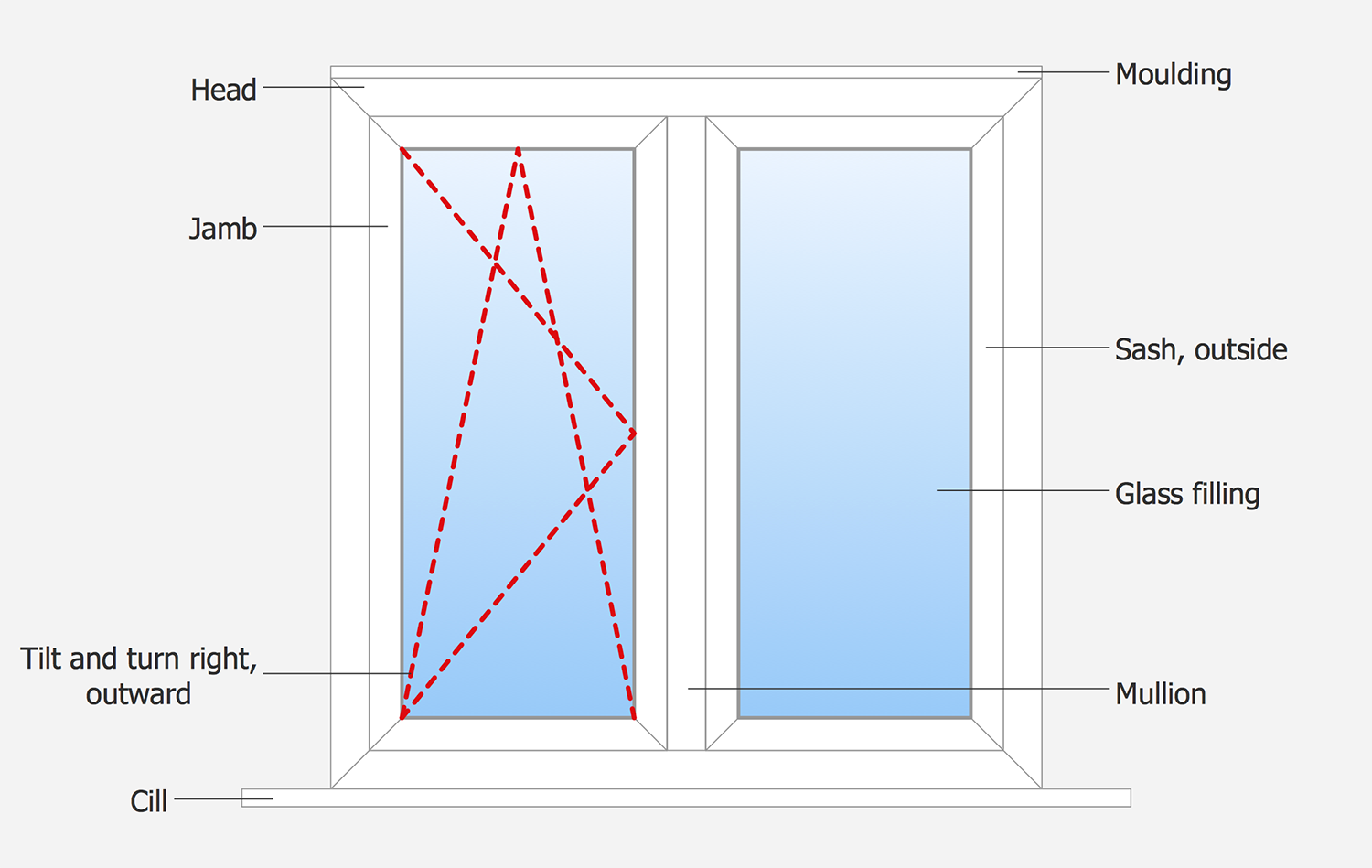

Example 10: Window Outside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 10 minutes creating this sample.

The plastic windows have many advantages, they safely retain a heat, do not miss the sounds from the street, have modern and aesthetic appearance, offer for choice many variations of styles and color ranges, allowing to successfully inscribe them at the interior of any room. The plastic windows are constructed from the separate blocks, which vary in their functionality and mounts. This example details the structure of a plastic window presented from the inside view and describes all components: head, molding, sash, jamb, glass filling, mullion, cill, tilt and turn visual designations from outside. Optionally, you can also add detailed description of their characteristics and functions.

Window Outside

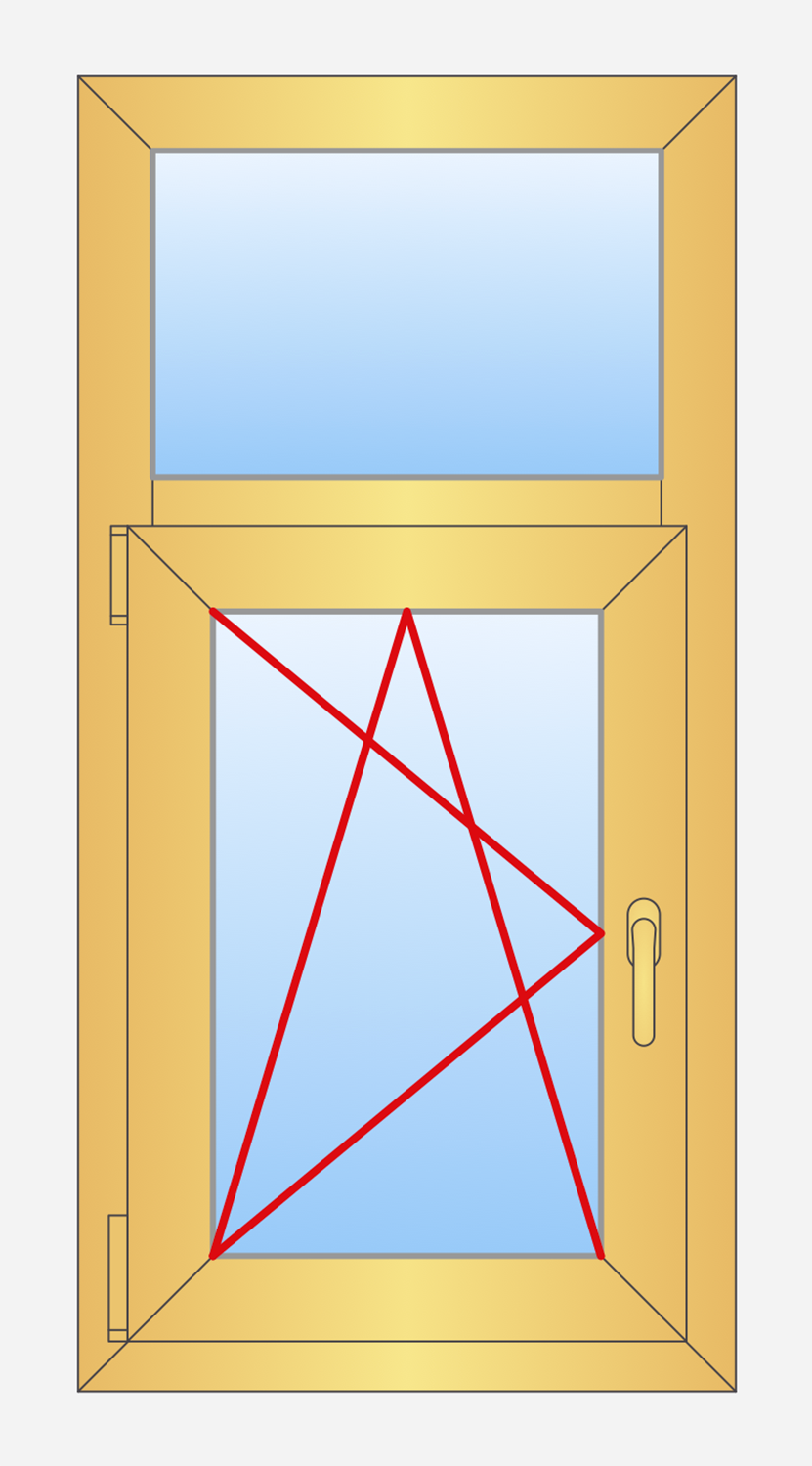

Example 11: Transom Inside

This example was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

This sketch example represents the inside view of tilt and turn window with a transom, which is located above the window and is separated from it by the lath. The ConceptDraw's Tilt and Turn Windows solution is ideal assistant in architectural design and windows construction, it help in drawing the windows of varied types, design, style, color and quantity of sashes.

Transom Inside

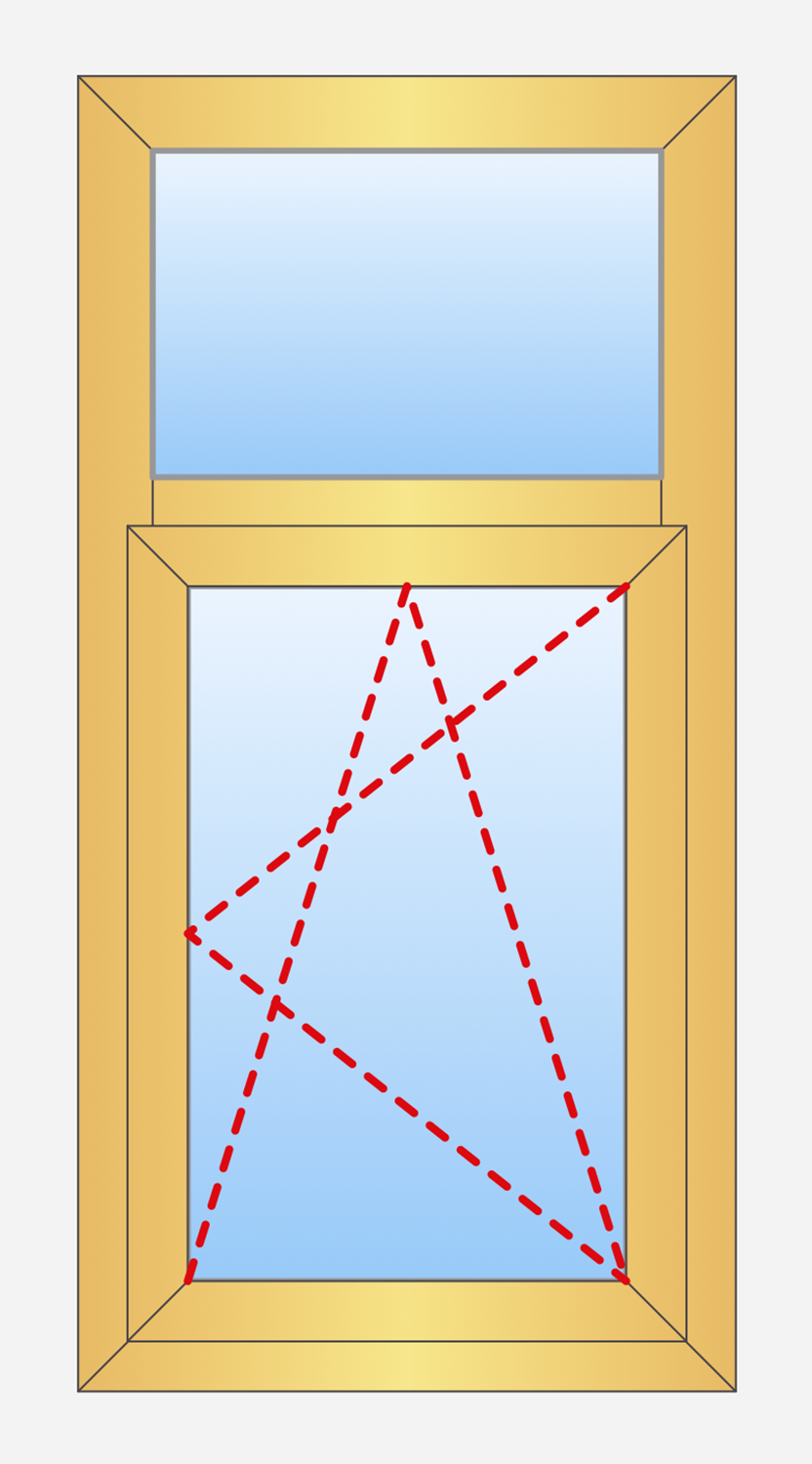

Example 12: Transom Outside

This sample was created in ConceptDraw DIAGRAM using a combination of libraries from the Tilt and Turn Windows Solution. An experienced user spent 5 minutes creating this sample.

This sketch sample shows the outside view of tilt and turn window with a fixed transom. The glazing can be mounted on the surface of any window sash or door, it is fixed into a rabbet in the frame. In a given case the window and transom are both glazed. The glazing of metal-plastic window and door can contain one, two or three glass according to the chosen technology.

Transom Outside

Inside

Tilt and Turn Windows Solution for Microsoft Windows and Apple macOS

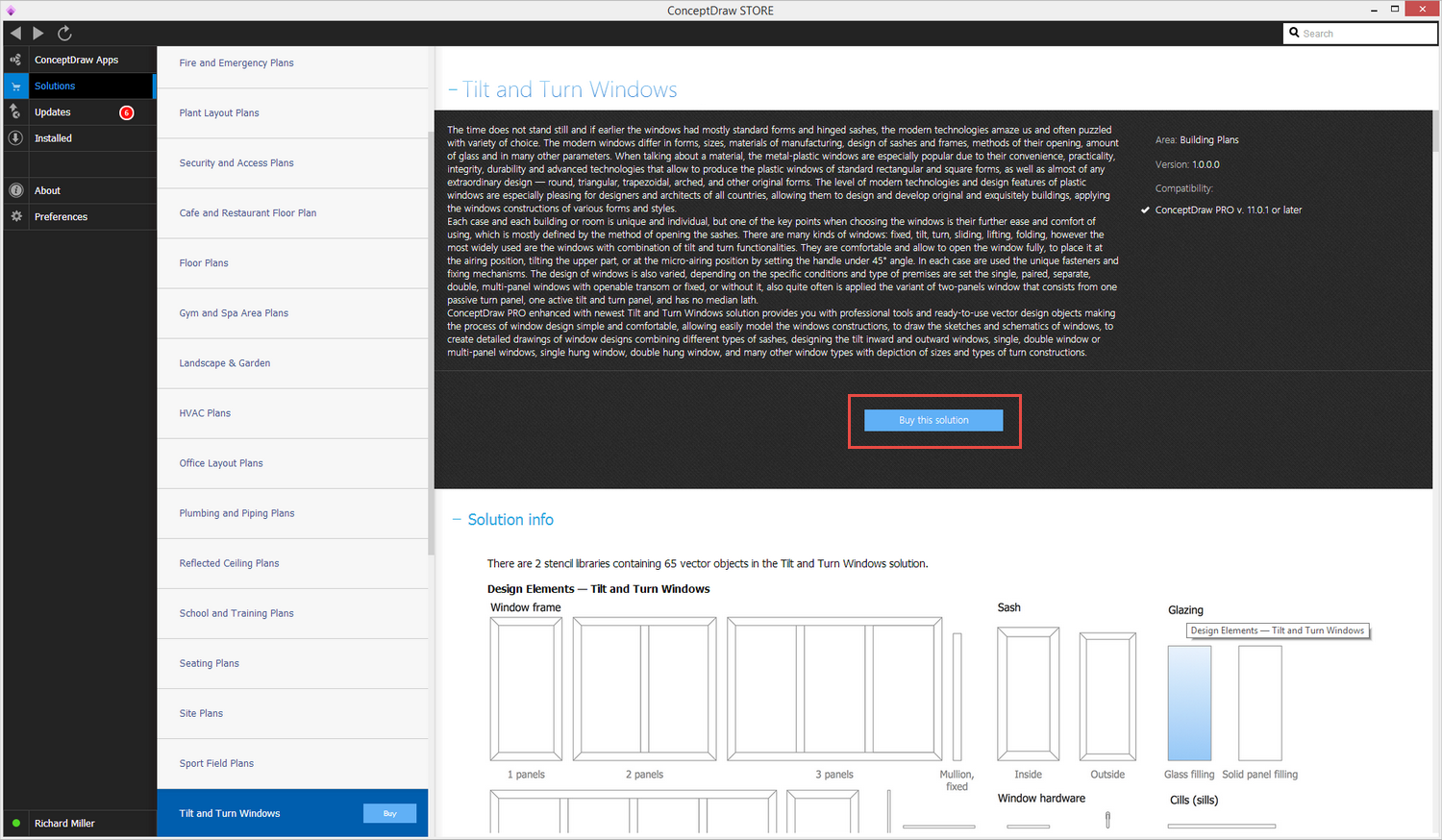

What I Need to Get Started

After ConceptDraw DIAGRAM is installed, the Tilt and Turn Windows solution can be purchased either from the Building Plans area of ConceptDraw STORE itself or from our online store. Thus, you will be able to use the Tilt and Turn Windows solution straight after.

Tilt and Turn Windows solution - Buy

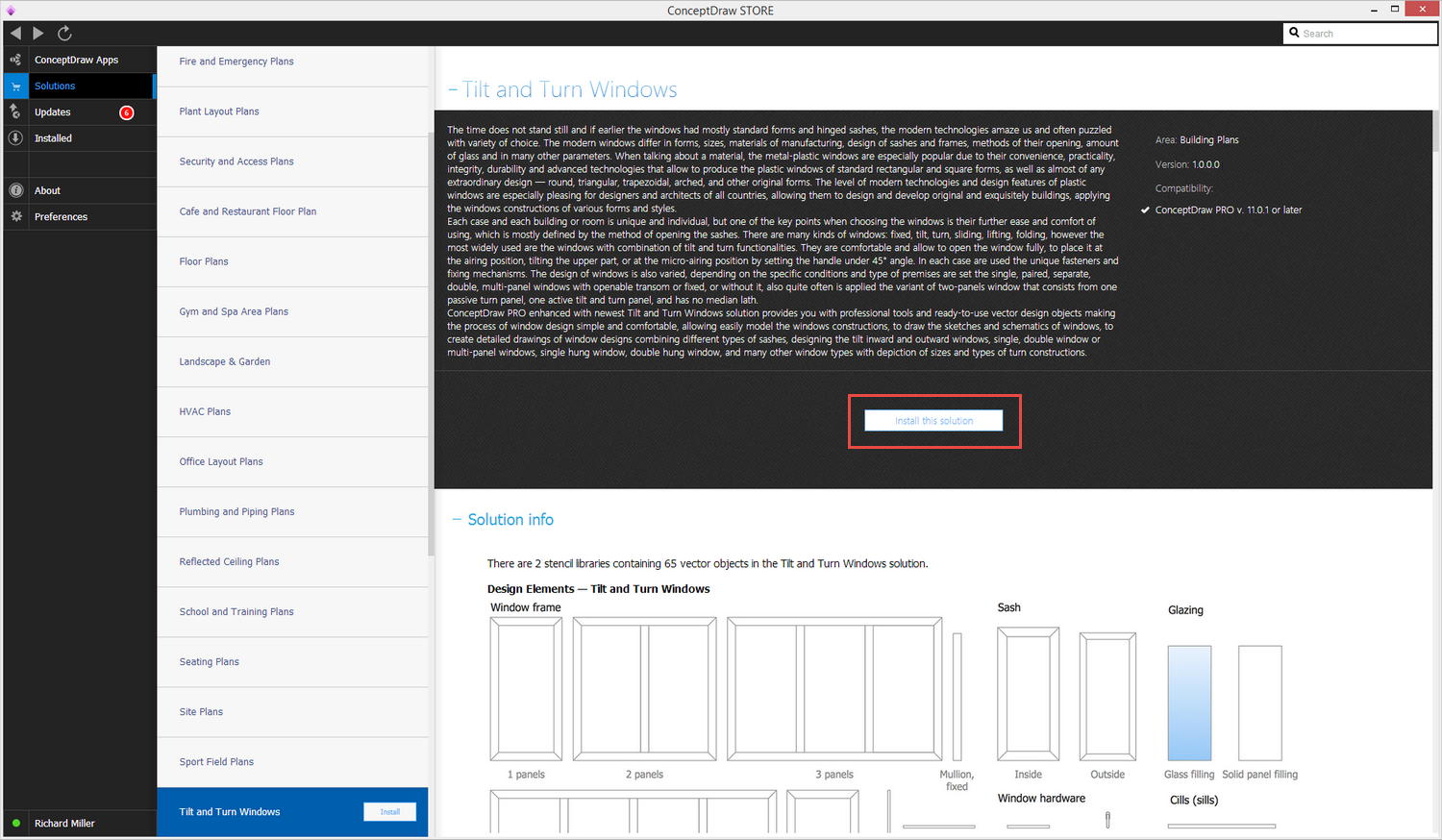

How to install

First of all, make sure that both ConceptDraw STORE and ConceptDraw DIAGRAM applications are downloaded and installed on your computer. Next, install the Tilt and Turn Windows solution from the ConceptDraw STORE to use it in the ConceptDraw DIAGRAM application.

Tilt and Turn Windows solution - Install

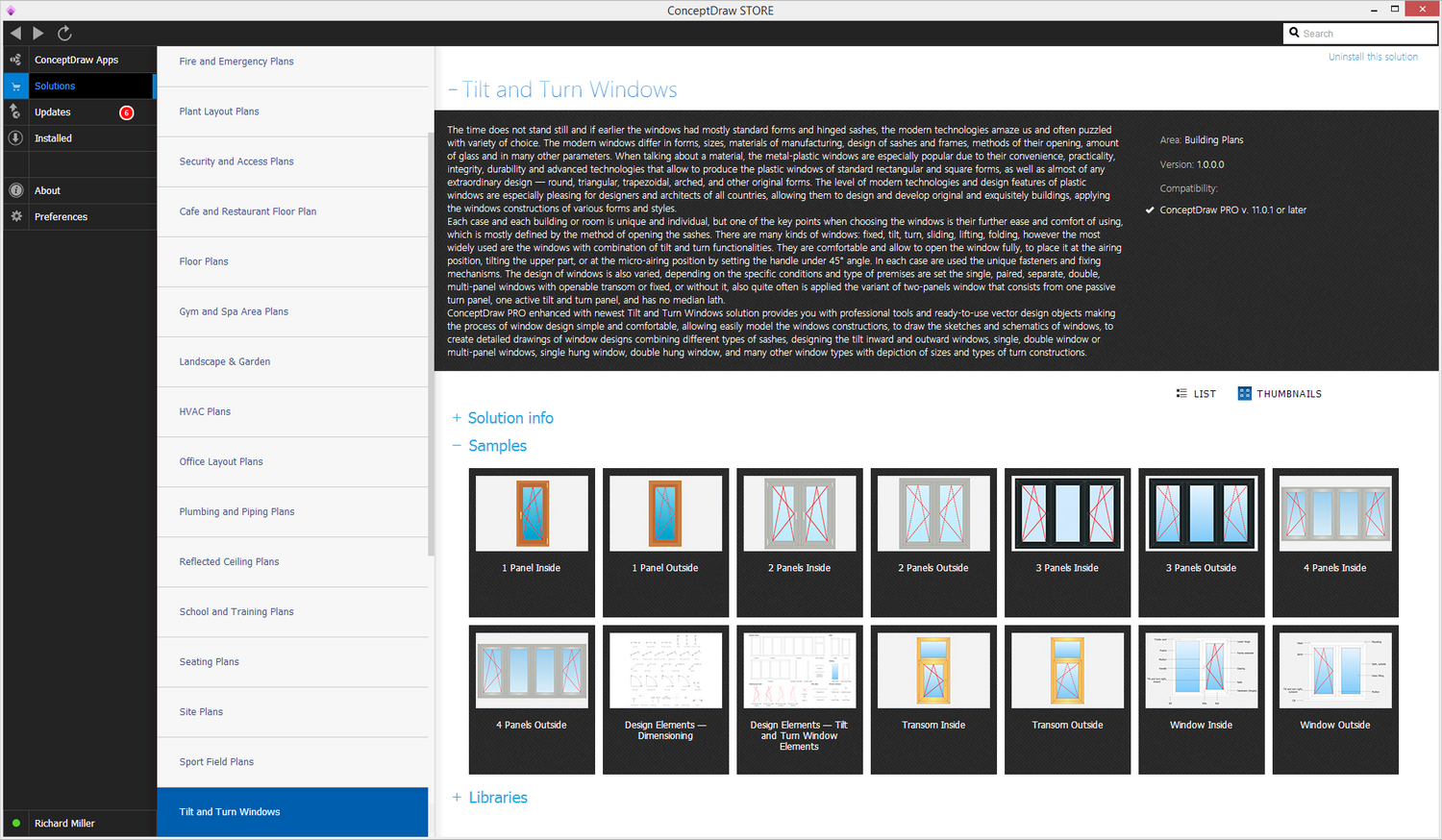

Start using

Start using the Tilt and Turn Windows solution to make the professionally looking floor plans by adding the design elements taken from the stencil libraries and editing the pre-made examples that can be found there.

Tilt and Turn Windows solution - Start Using
